Discuss the role of Ca2+ ions in muscle contraction. Draw neat sketches to illustrate your answer.

OR


A milkman is very upset one morning as his cow refuses to give any milk. The milkman’s wife gets the calf from the shed. On fondling by the calf, the milkman got sufficient milk. Describe the role of endocrine gland and hormone associated with this response with suitable diagram.


i. Muscle contraction is initiated by a signal sent by the central nervous system CNS) via a motor neuron.


ii. A motor neuron along with the muscle fibres connected to it constitute a motor unit.


iii. The junction between a motor neuron and the sarcolemma of the muscle fibre is called the neuromuscular junction or motor-end plate.


iv. A neural signal reaching this junction releases a neurotransmitter Acetyl choline) which generates an action potential in the sarcolemma. This spreads through the muscle fibre and causes the release of calcium ions into the sarcoplasm.

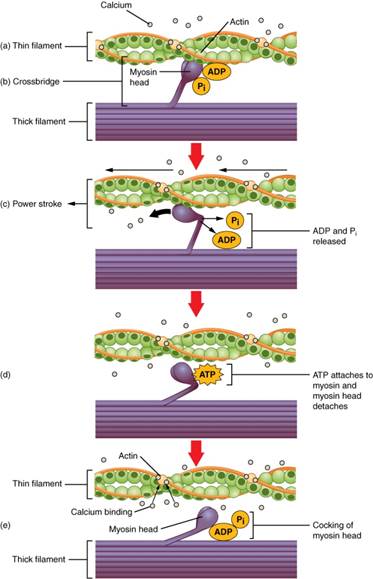

v. Increase in Ca2+ level leads to the binding of calcium with a subunit of troponin on actin filaments and thereby remove the masking of active sites for myosin.


vi. Utilising the energy from ATP hydrolysis, the myosin head now binds to the exposed active sites on actin to form a cross bridge.


vii. This pulls the attached actin filaments towards the centre of ‘A’ band. The ‘Z’ line attached to these actions are also pulled inwards thereby causing a shortening of the sarcomere, i.e., contraction.


viii. A new ATP binds and the cross-bridge is broken. The ATP is again hydrolysed by the myosin head and the cycle of cross bridge formation and breakage is repeated causing further sliding.


ix. The process continues till the Ca2+ ions are pumped back to the sarcoplasmic cisternae resulting in the masking of actin filaments.


i. This causes the return of ‘Z’ lines back to their original position, i.e., relaxation.


OR

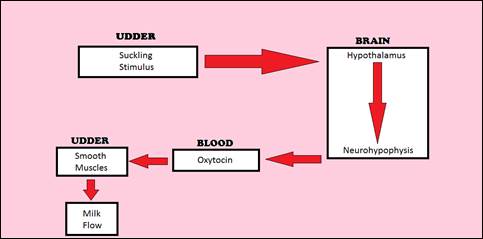

When the calf fondles it causes a suckling stimulus due to which a neuroendocrine reflex is created. This leads to the release of oxytocin from the neurohypophysis. Oxytocin causes contraction of smooth muscle of the udder resulting in milk flow. An intra-udder injection of hormone like oxytocin would do the same.
