In the circuit shown in Fig.14.20, find the value of RC.

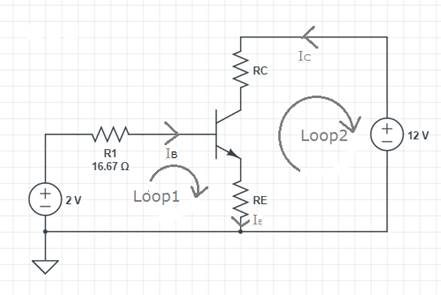

We can simplify the circuit as follows.

We can replace the branch having 100k and 20k resistance with a resistance and a source of some potential. 100k and 20k resistances are in parallel if we short all the voltage sources. Hence, the equivalent resistance will be,
![]()
The potential source should constitute the same potential as in the base terminal. So, it is basically going to be the voltage drop across 20k resistance.
So, it will be,
![]()
![]()
Also, IE = IB + Ic and Ic = βIB
From loop1,
![]()
![]()
![]()
![]()
Now, from loop2,
![]()
![]()
![]()


![]()
Putting the values of RE we can find RC.
