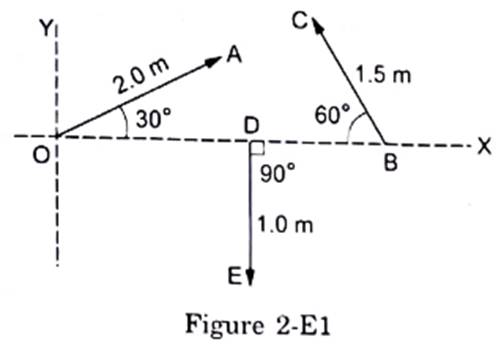

Refer to figure (2-EI). Find (a) the magnitude, (b) x and y components and (c) the angle with the X-axis of the resultant of and
Let us resolve the vectors along x and y-axes first.
Magnitude of
x-component = OA. cos 30° =2 × √3/2 =√3 m
y-component = OA. sin 30° =2× 1/2 =1 m
Magnitude of
x-component = BC. cos 120° =1.5 × (-1/2) =-0.75 m
y-component = BC. sin 120° =1.5 × (√3/2) =0.75√3
Magnitude of
x-component= DE. cos 270° =0 m
y-component = DE. sin 270° =-1 m
(angles of cosine are taken from the positive direction of x-axis)
(b)Now
x-component of the resultant = Sum of x-components of the vectors
y-component of the resultant = Sum of y-components of the vectors
(a) Magnitude of resultant
(c) angle with X-axis of resultant is given by tanθ =Magnitude of y-comp/Magnitude of x-comp
