Look at Fig. 4.13. Mark where the heat is being transferred by conduction, by convection and by radiation.

Question

Philoid · Accepted Answer

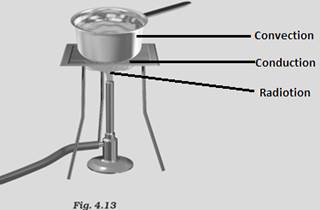

Since there is no requirement of any medium for transfer of heat in radiation and in conduction, there is transfer of heat between the solids and in case of liquids and gases, heat is transferred by the process of convection. The transfer of heat by different processes can be shown by the diagram as follows:

Look at Fig. 4.13. Mark where the heat is being transferred byconduction, by convection and by radiation.

Look at Fig. 4.13. Mark where the heat is being transferred by
conduction, by convection and by radiation.
