Give (i) an oblique sketch and (ii) an isometric sketch for each of the following: (a) A cuboid of dimensions 5 cm, 3 cm and 2 cm. (Is your sketch unique?) (b) A cube with an edge 4 cm long.

Question

Philoid · Accepted Answer

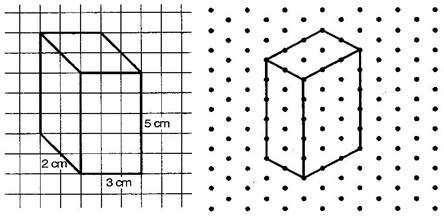

(a) Oblique and isometric sketch

No it won’t be unique. Since length, height and width are not mentioned. I can draw 2 more figures. I can switch the three.

(b)-Oblique sketch for a cube of side =4cm.

Isometric sketch for the same cube-

Give (i) an oblique sketch and (ii) an isometric sketch for each of the following:(a) A cuboid of dimensions 5 cm, 3 cm and 2 cm. (Is your sketch unique?)(b) A cube with an edge 4 cm long.

Give (i) an oblique sketch and (ii) an isometric sketch for each of the following:
(a) A cuboid of dimensions 5 cm, 3 cm and 2 cm. (Is your sketch unique?)

(b) A cube with an edge 4 cm long.
