Draw any line segment AB. Mark any point M on it. Through M, draw a perpendicular to . (Use ruler and compasses)

Question

Draw any line segment AB. Mark any point M on it. Through M, draw a perpendicular to . (Use ruler and compasses) s

Philoid · Accepted Answer

Steps of Construction-

1. Draw a line segment AB. Mark a point M on it.

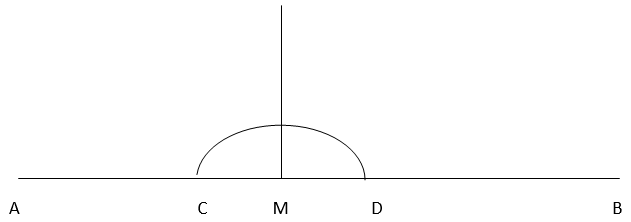

2. With M as centre and a convenient radius, draw an arc intersecting the line AB at two points C and D

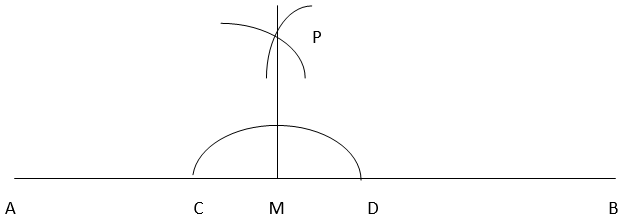

3. With C and D as centres and a radius greater than MC, draw two arcs, which cut each other at P.

4. Join PM. Then PM is perpendicular to AB through the point M.
