Solution of Chapter 8. Quadrilaterals (NCERT - Mathematics Book)

The angles of quadrilateral are in the ratio 3: 5: 9: 13. Find all the angles of the quadrilateral.

If the diagonals of a parallelogram are equal, then show that it is a rectangle.

Show that if the diagonals of a quadrilateral bisect each other at right angles, then it is a rhombus.

Show that the diagonals of a square
are equal and bisect each other at right angles.

Show that if the diagonals of a quadrilateral are equal and bisect each other at right angles, then it is a square.

Diagonal AC of a parallelogram ABCD bisects ∠A (see Fig. 8.19). Show that

(i) It bisects ∠ C also,

(ii) ABCD is a rhombus.

ABCD is a rhombus. Show that diagonal AC bisects ∠ A as well as ∠ C and diagonal BD bisects ∠ B as well as ∠ D

ABCD is a rectangle in which diagonal AC bisects ∠A as well as ∠C Show that:

(i) ABCD is a square

(ii) Diagonal BD bisects ∠B as well as ∠D

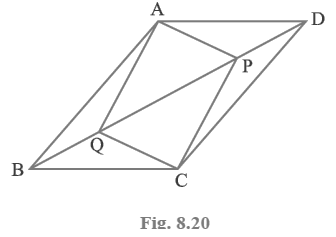

In parallelogram ABCD, two points P and Q are taken on diagonal BD such that DP = BQ (see Fig. 8.20). Show that:

(i) Δ APD ≅Δ CQB

(ii) AP = CQ

(iii) Δ AQB ≅Δ CPD

(iv) AQ = CP

(v) APCQ is a parallelogram

ABCD is a parallelogram and AP and CQ are perpendiculars from vertices A and C on diagonal BD (see Fig. 8.21). Show that

(i) Δ APB ≅Δ CQD

(ii) AP = CQ

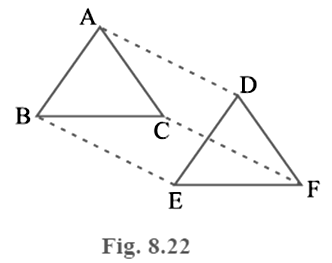

In Δ ABC and Δ DEF, AB = DE, AB || DE, BC = EF and BC || EF. Vertices A, B and C are joined to vertices D, E and F respectively (see Fig. 8.22). Show that

(i) Quadrilateral ABED is a parallelogram

(ii) Quadrilateral BEFC is a parallelogram

(iii) AD || CF and AD = CF

(iv) Quadrilateral ACFD is a parallelogram

(v) AC = DF

(vi) Δ ABC ≅Δ DEF.

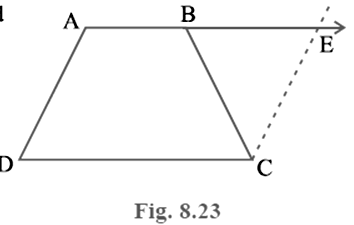

ABCD is a trapezium in which AB || CD and AD = BC (see Fig. 8.23). Show that

(i) ∠ A = ∠ B

(ii) ∠ C = ∠ D

(iii) Δ ABC ≅Δ BAD

(iv) Diagonal AC = diagonal BD

[Hint: Extend AB and draw a line through C parallel to DA intersecting AB produced at E.]

ABCD is a quadrilateral in which P, Q, R and S are mid-points of the sides AB, BC, CD and DA (see Fig 8.29). AC is a diagonal. Show that :

(i) SR || AC and SR = AC

(ii) PQ = SR

(iii) PQRS is a parallelogram.

ABCD is a rhombus and P, Q, R and S are the mid-points of the sides AB, BC, CD and DA respectively. Show that the quadrilateral PQRS is a rectangle.

ABCD is a rectangle and P, Q, R and S are mid-points of the sides AB, BC, CD and DA respectively. Show that the quadrilateral PQRS is a rhombus.

ABCD is a trapezium in which AB || DC, BD is a diagonal and E is the mid-point of AD. A line is drawn through E parallel to AB intersecting BC at F (see Fig. 8.30). Show that F is the mid-point of BC.

In a parallelogram ABCD, E and F are the mid-points of sides AB and CD respectively (see Fig. 8.31). Show that the line segments AF and EC trisect the diagonal BD.

Show that the line segments joining the mid-points of the opposite sides of a quadrilateral bisect each other.

ABC is a triangle right angled at C. A line through the mid-point M of hypotenuse AB and parallel to BC intersects AC at D. Show that

(i) D is the mid-point of AC

(ii) MD ⊥ AC

(iii) CM = MA =AB
